Threats Manager Studio (TMS) provides a Diagram tool, which represents the main interface to create Threat Models for typical uses. With Diagrams, it is possible to represent the system and how the information flows among its components.
The Home ribbon contains the main buttons to work with Diagrams:
- Iterate Diagrams
- Create Diagram
- Reorder Diagrams

Iterate Diagrams
Button Iterate Diagrams represents the main button to access the diagrams included in the Threat Model.
If there is no diagram, then it is disabled, as shown in the Figure above.
If there is at least a diagram, it is enabled and has a button with the head of an arrow pointing down. In that case, if you click Iterate Diagrams and there is no open diagram, then the first one is opened. If you click Iterate Diagrams again, the same diagram is shown: that may be useful if you have other pages, to get to the main diagram fast.
If there are multiple open diagrams, then clicking Iterate Diagrams iterates among them.
To access a specific diagram, you must click the arrow button below Iterate Diagrams.
Create Diagram
Button Create Diagram allows to create a new Diagram.
The newly created diagram shows an empty canvas. For details on how to create a diagram, please refer to Diagramming Basics and to the Introductory Topics.
The diagram shows the following ribbon.

The Diagram ribbon contains the following sections and buttons.
Section | Button | Description |
---|---|---|
Add | New External Interactor | Creates a new External Interactor in an empty space in the diagram. |
New Process | Creates a new Process in an empty space in the diagram. | |
New Data Store | Creates a new Data Store in an empty space in the diagram. | |
New Trust Boundary | Creates a new Trust Boundary in an empty space in the diagram. | |
New Threat Type | Creates a new Threat Type. | |
Layout | Align Horizontally | Aligns the selected objects horizontally. |
Align Vertically | Aligns the selected objects vertically. | |
Align Top | Aligns the tops of the selected objects. | |
Align Botton | Aligns the bottoms of the selected objects. | |
Align Left | Aligns the lift sides of the selected objects. | |
Align Right | Aligns the right sides of the selected objects. | |
Automatic Layout | Performs an automatic layout. It is available only for Expert or Pioneer Execution Modes because it has the problem of applying a layout that may not be the best for your uses. | |
View | Toggle Markers | Hides or shows the Threat markers to Entities and Flows. |
Zoom | Zoom In | Increases the size of the diagram on the screen. |
Zoom Out | Decreases the size of the diagram on the screen. | |
100% | Reverts the diagram to the original size on the screen. | |
Zoom to Fit | Zooms the diagram to fit the visible space. | |
Create Snapshot | Copy to Clipboard | Copies the image of the diagram to the Clipboard. |
Copy to File | Saves the image of the diagram to file. | |
Remove | Remove Current Diagram | Removes the current diagram. Entities, Flows, and Trust Boundaries will not be affected. |
Copy | Copy | Copies the selected objects to the clipboard. To paste the objects, you have to use the context menu on an empty space of another diagram, by clicking the right mouse button and selecting action Paste. |
Cut | Copies the selected objects to the clipboard and then removes them from the diagram. To paste the objects, you have to use the context menu on an empty space of another diagram, by clicking the right mouse button and selecting action Paste. |
Tips & Tricks
If you need to maximize the size of the Drawing Pane to increase the readability of the diagram, you can minimize the Ribbon by double-clicking any of the titles of the tabs, like “Home” or “View”. Moreover, you can move the mouse over the separator between the Drawing Pane and the Stencils Pane, which you can find on the left of the Diagram page, and then click to close it. You can also move the mouse over the separator between the Drawing Pane and the Item Editor, which you can find on the right of the Diagram page, and then click to close it.
Reorder Diagrams

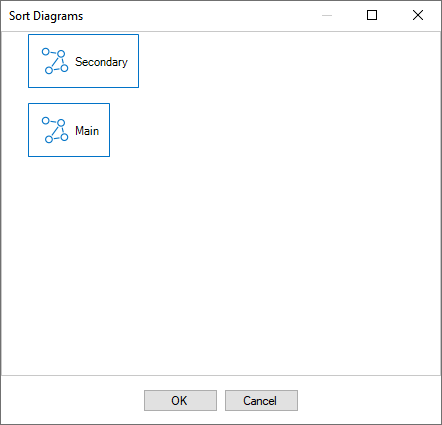

Button Reorder Diagrams shows dialog Sort Diagrams, which allows to reorder the diagrams by dragging and dropping them in the desired position.
